PF606 Lead-Free Solder Paste

PF606 LEAD-FREE SOLDER PASTE

Product description

Alloy: Sn96.5/Ag3.0/Cu0.5
Melting point: 217-219°C
Particle size: T3-T6
Halogen-Free or Halogen-containing
No Clean or Water Soluble

Applications

Universal Lead-Free SMD Solder Paste
Wide Range of Applications and PCB designs

Features

  • High Print Speed: 0-120 mm/sec
  • Over 8hrs stencil life
  • Extended Tack Time > 12 hrs
  • Lead-Free Solder Paste with excellent Wettability
  • Low Void

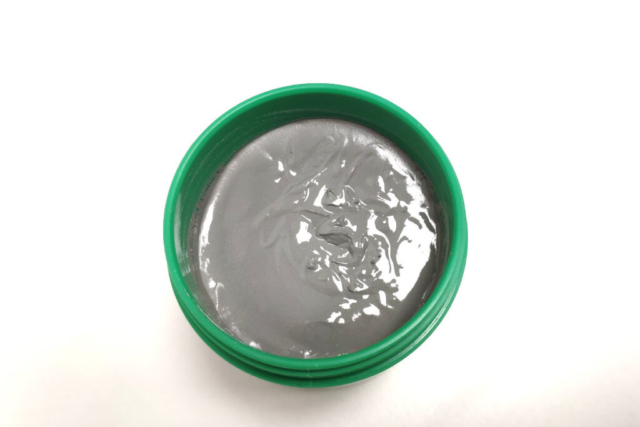

NeVo PF606 Lead Free Solder Paste

HOW TO ORDER SOLDER PASTE – Options for PF606

What does the label PF606 – P30 – T3 – 500

Solder Alloy

PF606 = SnAg3.0Cu0.5

Type

P30

Available Fluxes

ROL0
ROL1
Water Soluble

Particle Size

T3 = 20-45μm
T4 = 20-38μm
T5 = 15-25μm
T6 = 5-15μm

Weight / Packaging

30g = syringe 10cc
100g = syringe 30cc
150g = syringe 55cc
250g = plastic jar 250g
500g = plastic jar 500g
600g = small Semco cartridge 6oz
1200g = large Semco cartridge 12oz


STORAGE & HANDLING

  • Refrigerate the solder paste at 0-10°C. Shelf life is 6 months from production date (sealed package).
  • Keep away of direct sunlight.
  • Allow the paste to reach defined printing temperature (room temperature) for 3-4 hrs. Do not heat up the solder paste rapidly.
  • For jars packaging, mix the solder paste before use for 1-3 mins by plastic spatula.
  • It is recommended to finish fresh paste within 24 hrs. Do not store used paste and fresh paste in the same jar.
  • If printing process was interrupted for more than 1 hour, remove the remained paste from stencil and seal in the jar.
  • Recommended printing environment is 22-28°C and RH 30-60%.
